E-Moto Torp TC1000 controller kit for SurRon Ultra Bee

TC1000 controller has been developed to boost the performance of the SurRon Ultra Bee e-bikes and the Torp TM50 motor. Easy to install and configure in just a couple of clicks in the app.

It is also compatible with the SurRon Light Bee / Segway X260 and Talaria MX3/MX4- For the best performance on the Light Bee bikes we recommend pairing it with the Torp Motor TM25.

The TC1000 and SurRon Ultra Bee: The Ultimate Pairing

With the TC1000, you get the best of both worlds: enhanced power without sacrificing any of the stock features.

The Torp TC1000 controller stands out as the only option that preserves all the impressive functions of the SurRon Ultra Bee while delivering a significant performance boost to your ride!

SPECIFICATIONS:

-Field-oriented control (FOC)
-Supported batteries: up to 80V nominal 22S (92,4 V fully charged)
-Max Power: 50kW*
-Sensored (HALL Encoder) and sensorless control
-Max Battery Current: 700 A
-Max phase current: 1000 A*

*The maximum power you can achieve depends on the motor and battery you are using. The max PA depends on your motor.

-Efficiency up to 99%
-Working temperature: from -15 to 75 C°
-Bluetooth communication
-Pre-calibrated: Easy calibration through mobile app
-Overcurrent, overvoltage, undervoltage and overtemperature protection
-Communication with stock BMS
-Different regenerative braking and throttle modes
-Weight: 1,3kg
-Features: Mobile App (IOS & Android), stock SurRon display
-Protection class: IP67*
-Regular firmware updates

*While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors.

Modifying a stock electric vehicle can result in the vehicle becoming non-compliant with your local road safety regulations. It’s essential to consult with experts or authorities before modifying your vehicle to ensure adherence to road legality.

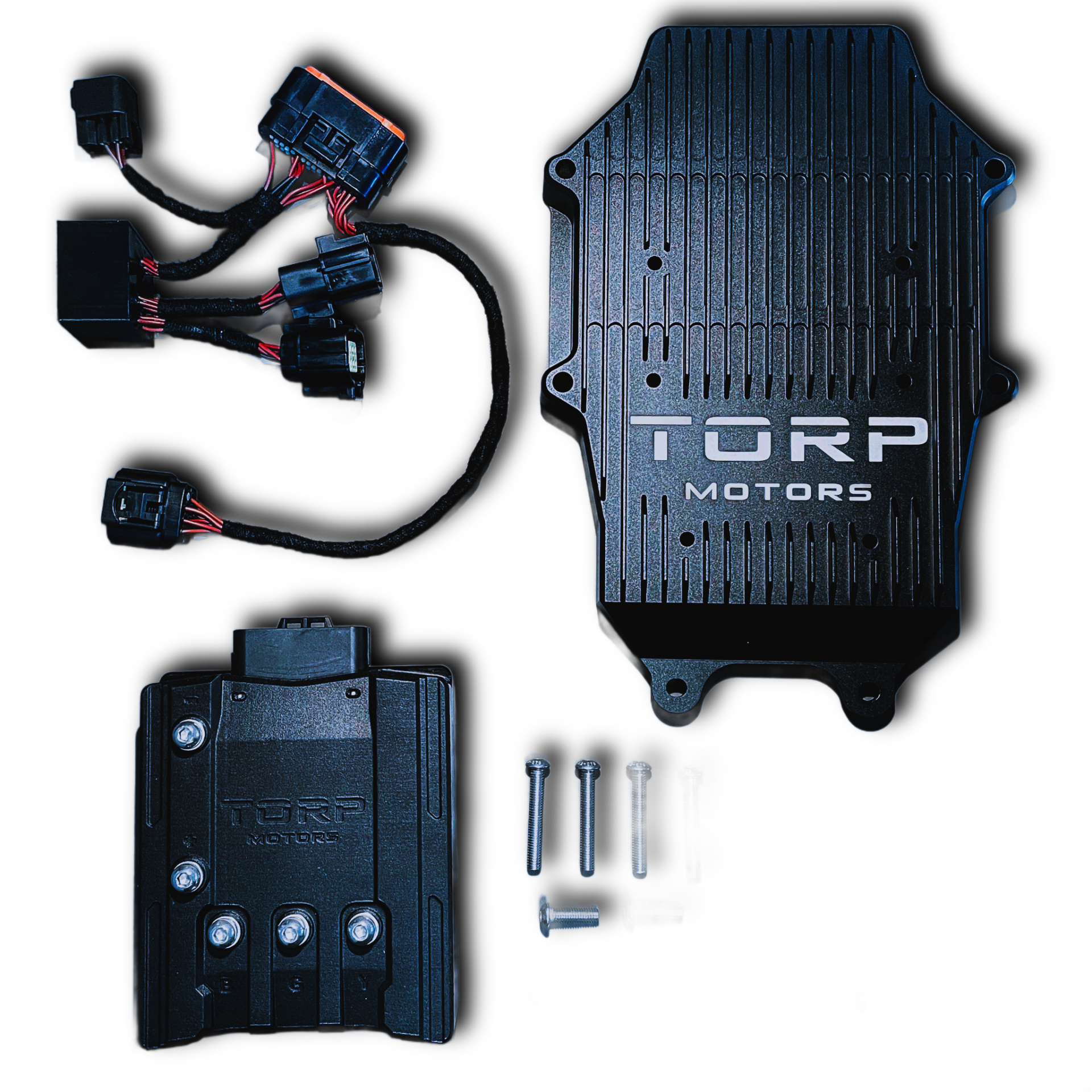

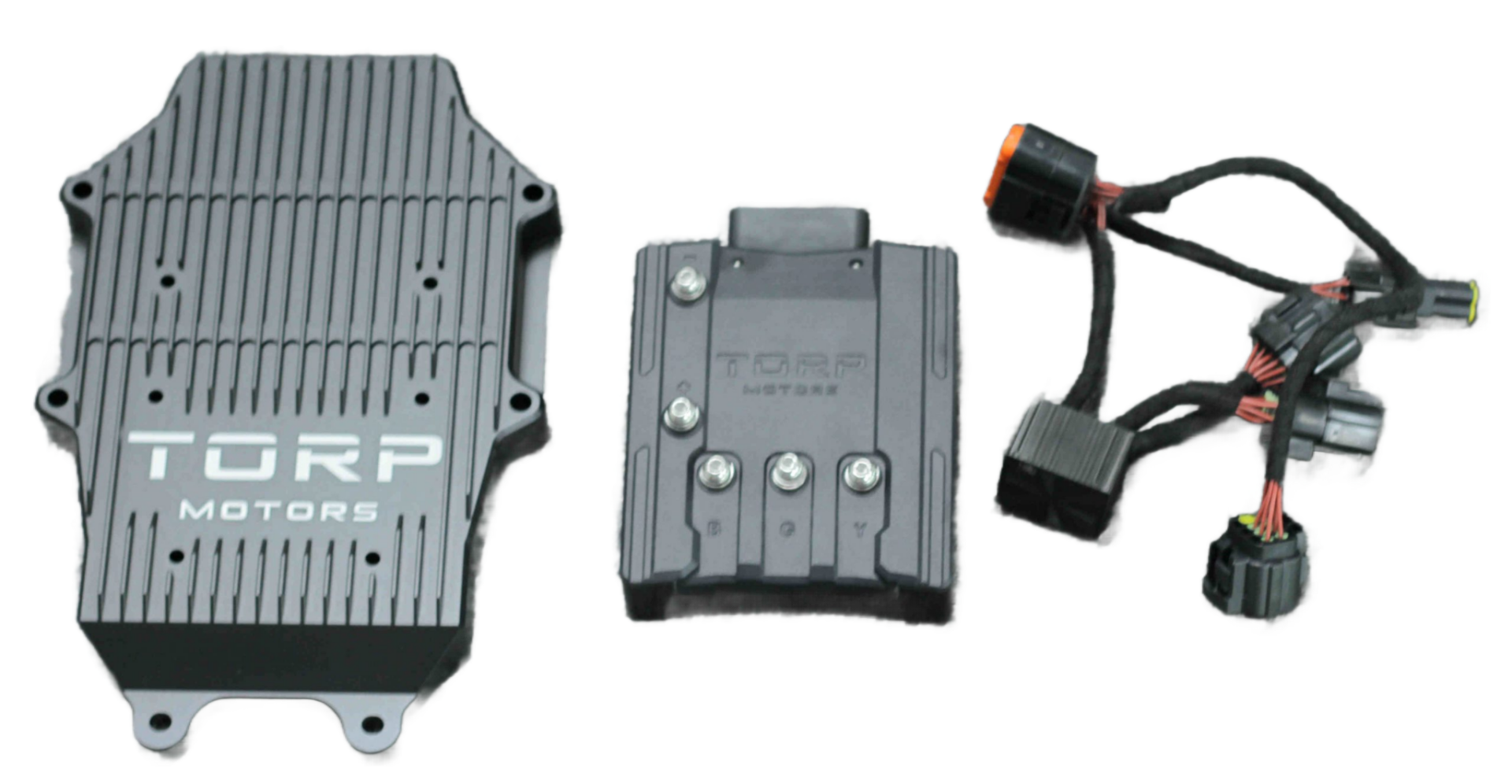

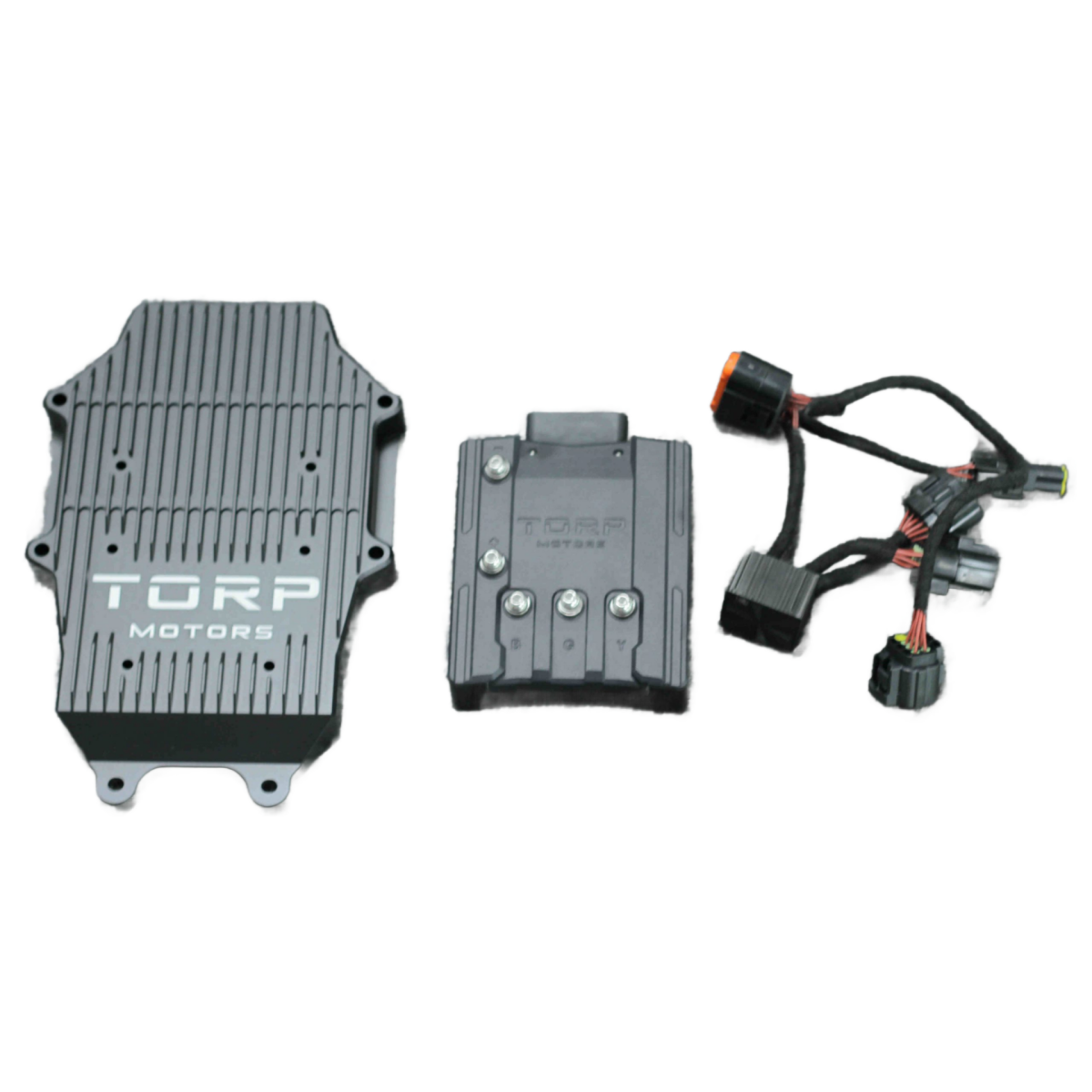

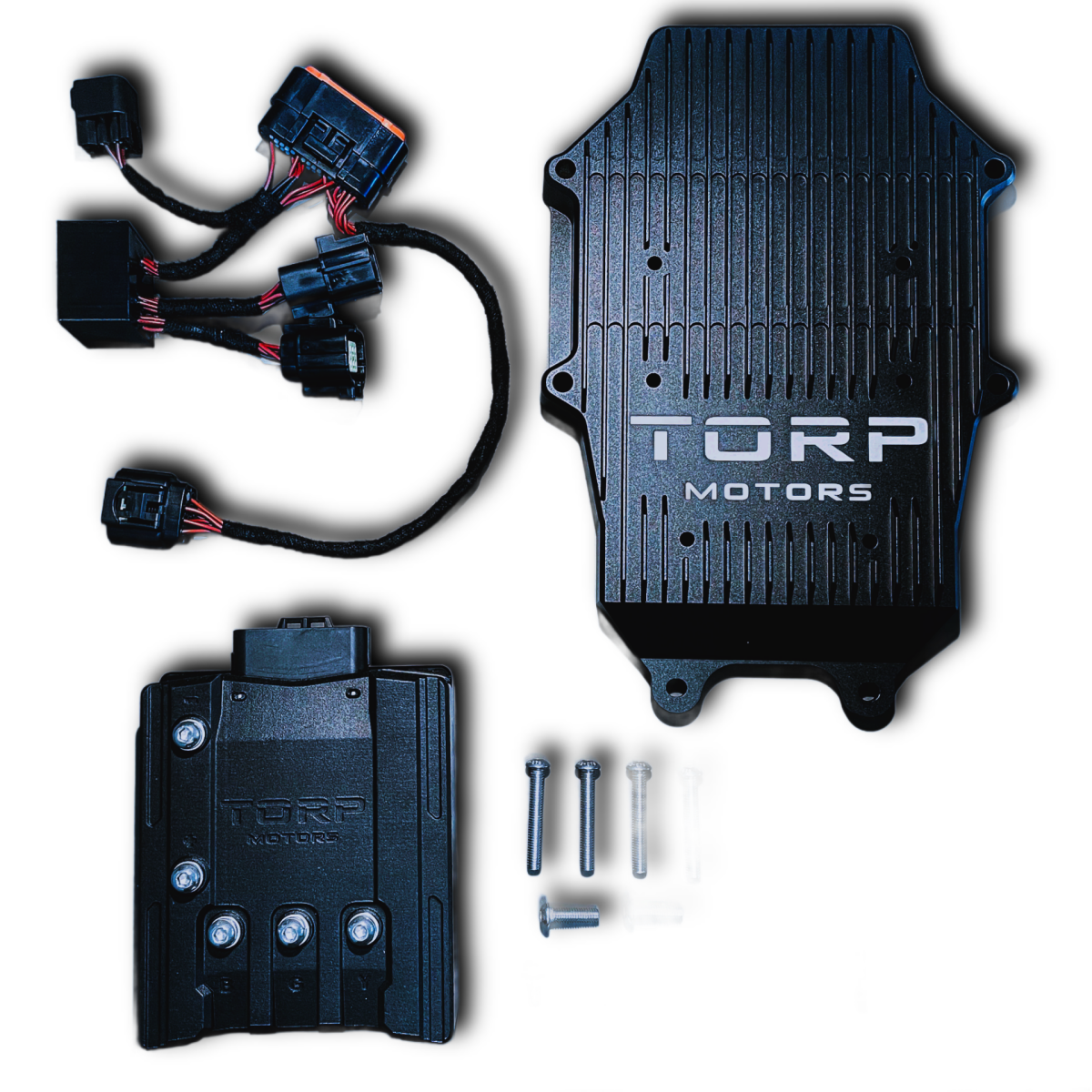

INCLUDED IN THE PACKAGE:

-1x TC1000 Controller
-1x wire harness with special electronics
-1x aluminum heatsink (comes in 3 different colors: black, red or blue)
-screws and tools needed for installation
-4x stickers
-1x pack of silicone grease
-short instructions
